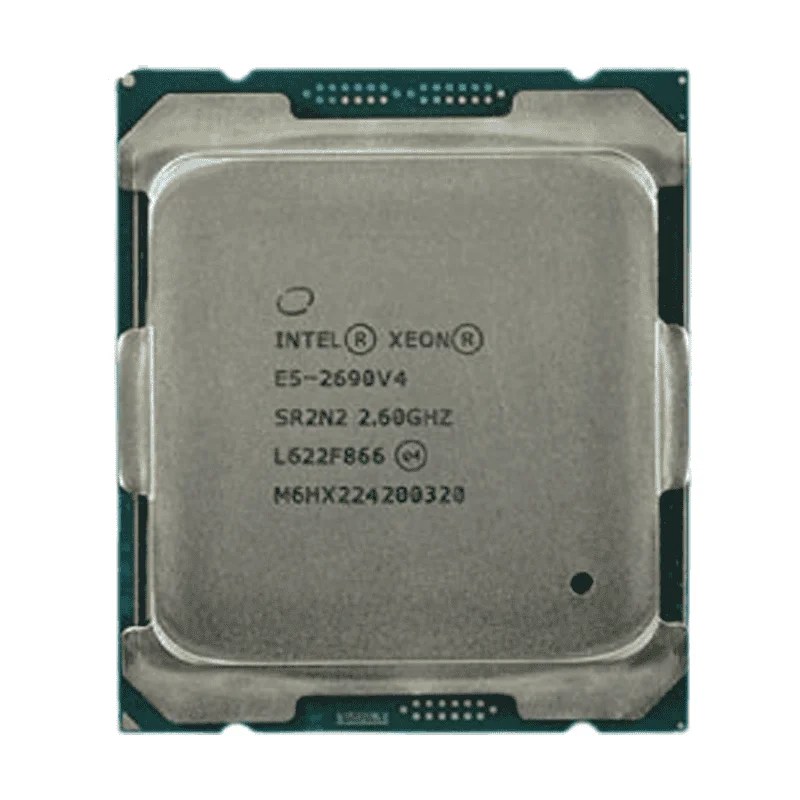

Intel Xeon E5-2690 v4 14-Core 2.60GHz Server Processor
₨ 33,999
12
People watching this product now!
-
Warranty 1 year
-
Used Product 15 Days
Payment Methods:
Description
Boost your server performance with the Intel® Xeon® E5-2690 v4, engineered for high-end workloads and enterprise computing.
- 14 Cores & 28 Threads – Ultimate multitasking
- 2.60 GHz Base – Up to 3.50 GHz Turbo
- 35MB Smart Cache – Fast data access
- Supports DDR4 2400 MHz – Up to 1.5TB
- PCIe 3.0 with 40 lanes – High expansion capability
Ideal for dual-socket server systems requiring performance and scalability.
Technical Specifications
| Intel Xeon E5-2690 v4 Specifications | |
|---|---|
| Product Collection | Intel® Xeon® Processor E5 v4 Family |
| Code Name | Broadwell |
| Total Cores / Threads | 14 / 28 |
| Base Frequency | 2.60 GHz |
| Max Turbo Frequency | 3.50 GHz |
| Cache | 35 MB Intel® Smart Cache |
| Bus Speed | 9.6 GT/s |
| TDP | 135 W |
| QPI Links | 2 |
| Max Memory Size | 1.5 TB |
| Memory Types Supported | DDR4 1600/1866/2133/2400 |
| Max Memory Channels | 4 |
| Max Memory Bandwidth | 76.8 GB/s |
| ECC Memory Support | Yes |
| Scalability | 2S (Dual Socket) |
| PCI Express Revision | 3.0 |
| PCIe Lanes | 40 |
| Sockets Supported | FCLGA2011 |
| Package Size | 45mm x 52.5mm |
| TCASE | 89°C |
| Launch Date | Q1’16 |
| Manufacturing Technology | 14nm |
| Instruction Set | 64-bit, Intel® AVX2 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Virtualization Technology (VT-x, VT-d) | Yes |
| Intel® AES New Instructions | Yes |
| Intel® Trusted Execution Technology | Yes |
| Security Features | Execute Disable Bit, OS Guard, Secure Key |
| Status | Discontinued (End of Servicing: June 30, 2022) |
Overview & Details
Intel® Xeon® E5-2690 v4 Server Processor
The Intel Xeon E5-2690 v4 is part of the powerful Xeon E5 v4 family, built on the advanced 14nm Broadwell microarchitecture. Designed for enterprise-grade servers, this processor delivers exceptional parallel performance and reliability for data-intensive applications, virtualization, and cloud computing environments.
Key Features:
- 14 high-performance cores and 28 threads powered by Hyper-Threading Technology
- Base clock speed of 2.60 GHz and a Max Turbo Frequency of 3.50 GHz
- 35MB of Intel Smart Cache to enhance processing speed
- Supports up to 1.5TB of DDR4 ECC Memory at speeds up to 2400 MHz
- High scalability with support for dual-socket (2S) configurations
- 40 PCI Express 3.0 lanes for high-speed I/O and expansion
Enterprise-Grade Security & Reliability:
Backed with advanced features like Intel® Trusted Execution Technology, Intel® AES New Instructions, and Intel® Virtualization Technologies (VT-x, VT-d), this processor is ideal for secure, virtualized, and mission-critical workloads.
Whether you’re building a high-performance database server, virtualization host, or a compute-heavy rendering machine, the Intel Xeon E5-2690 v4 provides the horsepower and flexibility to support demanding workloads with ease.
Intel Xeon E5-2690 v4 Server Processor Price in Pakistan
The Intel Xeon E5-2690 v4 14-Core 2.60GHz Server Processor offers exceptional multi-core processing for enterprise workloads, virtualization, and advanced computing tasks. With reliable performance and energy efficiency, it’s ideal for high-end servers and data centers. In Pakistan, the price typically ranges from Rs. 24,000 to Rs. 30,000 depending on condition and stock. Available across Pakistan with the best price guaranteed.
